Chicago Metallic T15 Click C2790 ECR Class C
A demountable 15mm easy-click grid with a universal main runner, joggled-end cross tees, and an ECR finish, in compliance with Class C corrosion resistance requirements.
- Product training
- Made in Europe
- End-to-end support
Overview

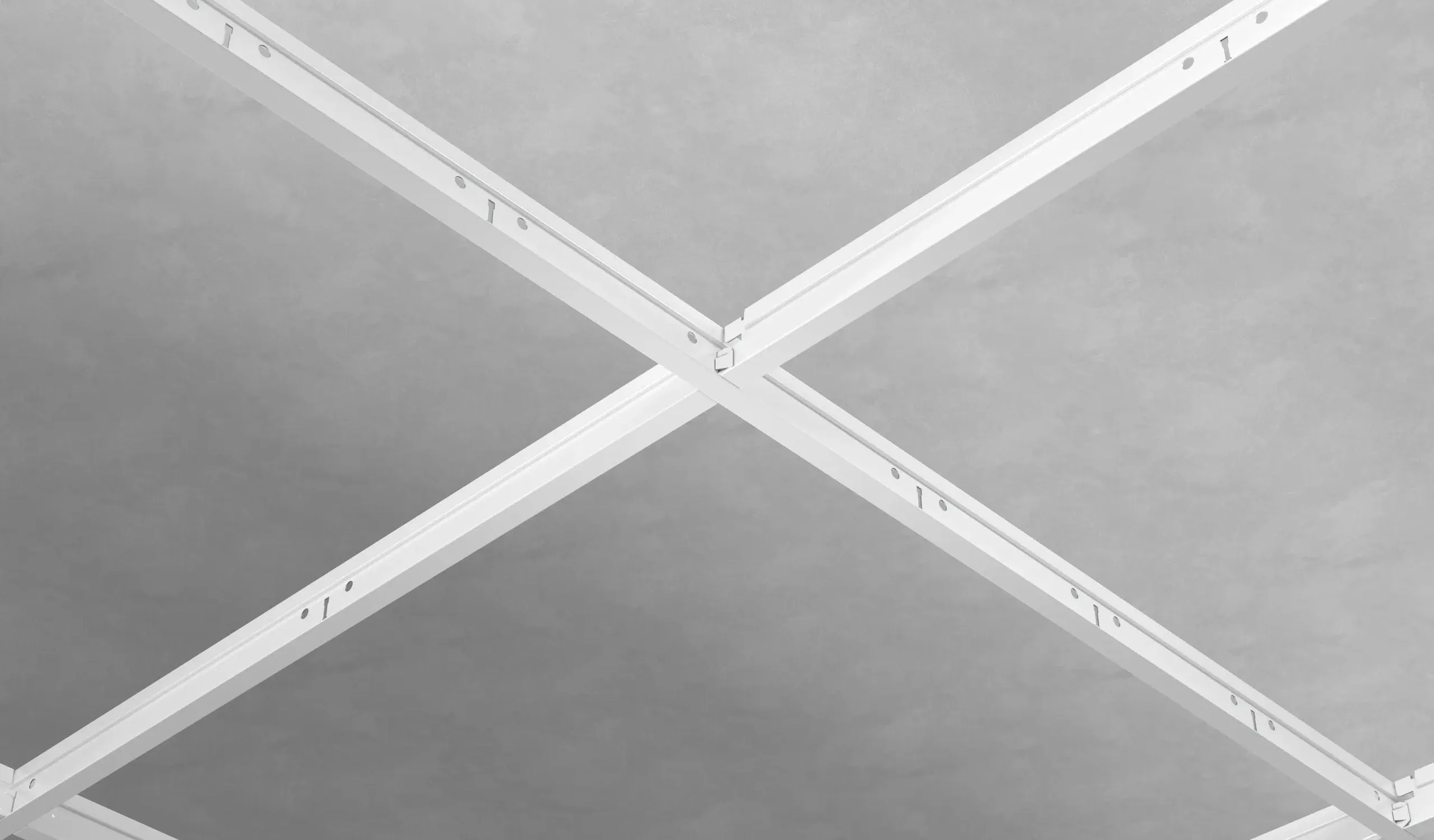

Robust performance, refined simplicity. A Chicago Metallic grid with narrow and discreet lines, ready to endure harsh, corrosive elements with resilience.
Ready for Class C.

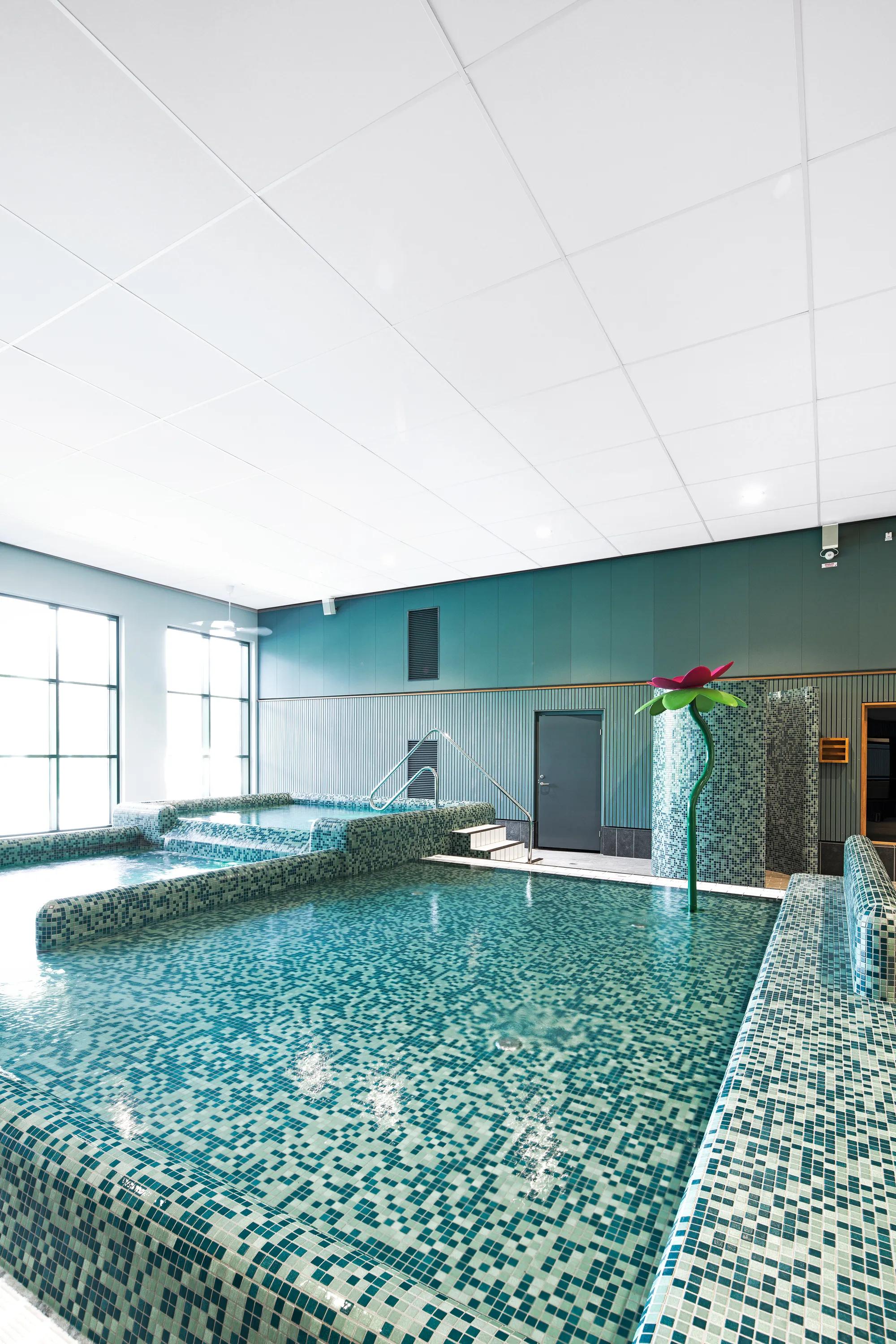

All grid components are extra-galvanised with an Enhanced Corrosion Resistant finish for EN 13964 Class C environments such as swimming pool facilities and kitchens.
Install with ease.

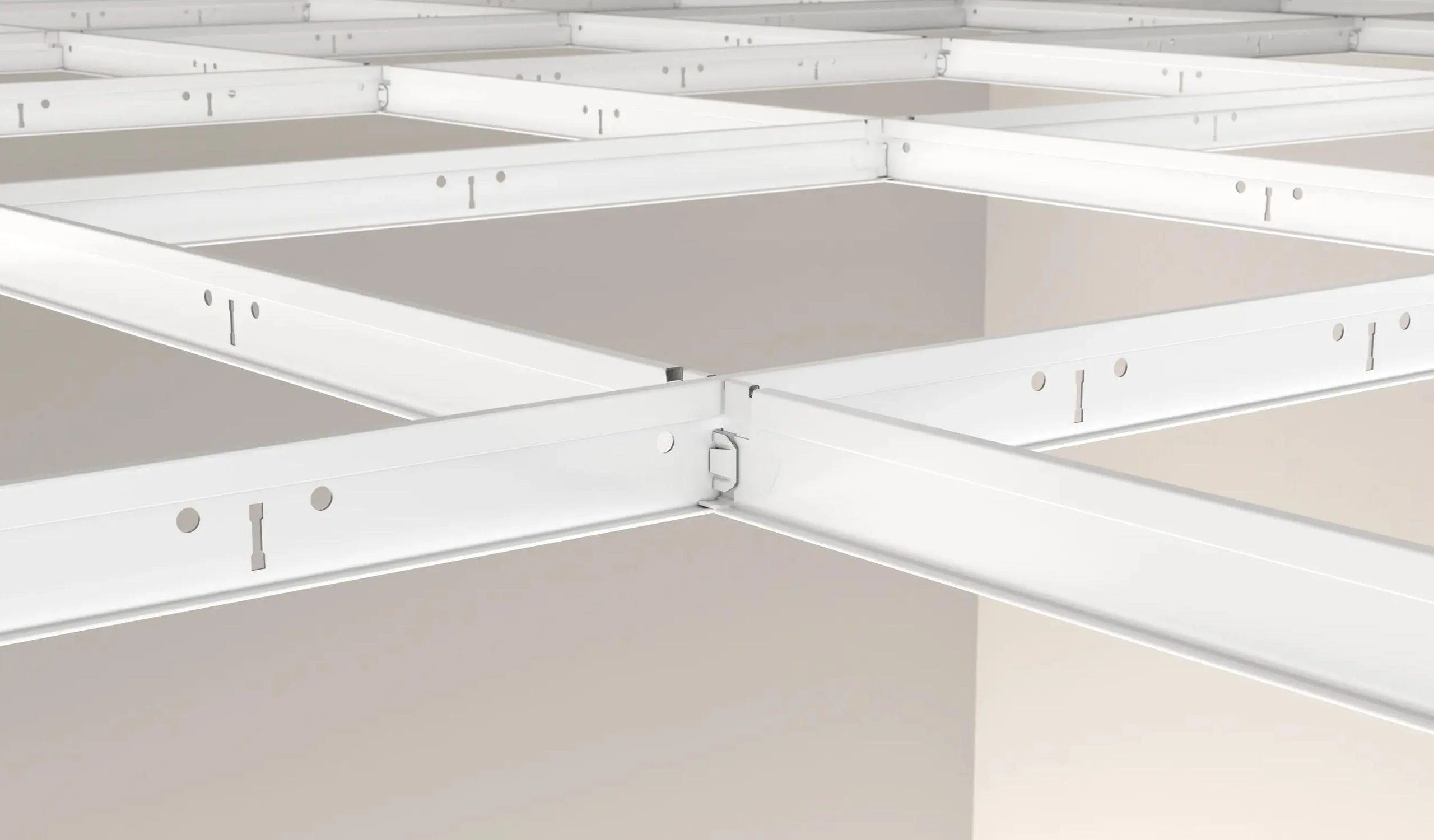

Easily install and dismantle the grid. An audible “click” at connection provides guidance to facilitate and accelerate installation.
Service-ready.
The main runner and cross tees feature a uniform 38mm height, improving load-bearing capacity for increased compatibility with ceiling-mounted accessories.
Assortment (Chicago Metallic T15 Click C2790 ECR Class C)
Main runner
:format(webp))
:format(webp)){kind=small}
Cross tee
:format(webp))
:format(webp))
Wall angle options
:format(webp))
:format(webp))
Accessories (6)
:format(webp))
Corrosion resistant special hanger
- For T profiles with a bulb of 11x6,5
- Durability: class D
- max load 35kg
- 100pcs/ctn
:format(webp))
Plastic hold down clip
- For tile thickness 15-20mm (A)
- 15-30mm (E) and 20-25mm (X,M,Z)
- Corrosion resistant
- Suitable for impact resistant ceilings 3A
- 100pcs/ctn
:format(webp))
Protective cap M6
- to protect TR D M6 after cutting
- Durability: class D
- 100pcs/ctn
Specifications
For more details about Chicago Metallic T15 Click C2790 ECR Class C please download the product datasheet or contact us.
